BENINCA BOB30M operator 230V for swing gates
02P.911366
Description
BENINCA BOB 30M - 230V operator for swing gates (single or double)
Self-locking, electromechanical motor for swing gate, reliable and silent. Easy and fast to install. Innovative FACE pair of gears mechanics all in metal. Reduced dimensions. Unlock device operating from the top, very fast and easy to use.
Technical specifications BOB30M:
- Power supply: 230V (50-60Hz)
- Max.thrust: 2300N
- Operating time: 18sec
- Operation cycle: 30%
- Operating temperature: -20/+50oC
- Leaf max dimension: 3,0m
- Weight: 8.6kg
Dimensions BOB30M:

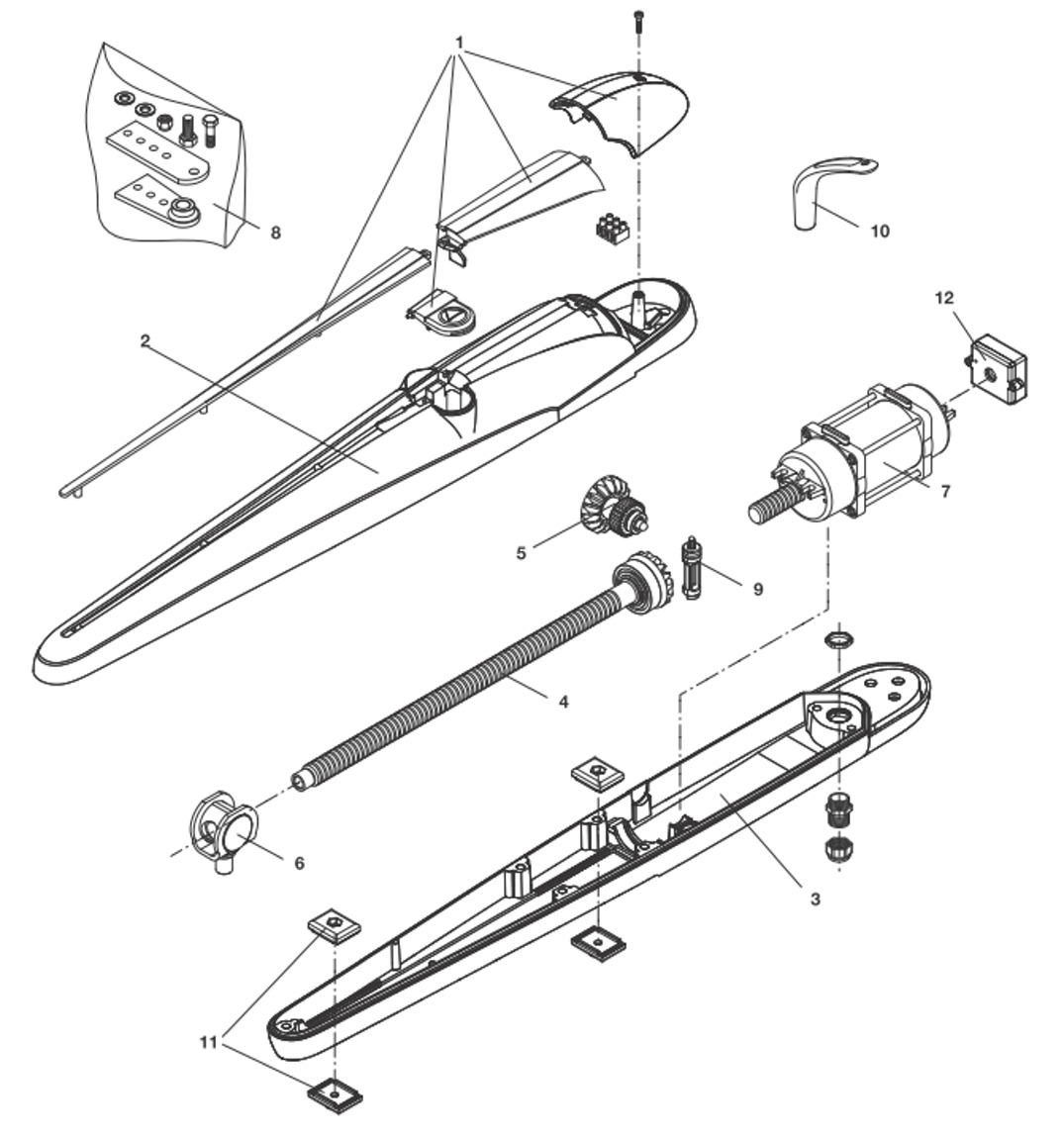

Illustration, components and spare parts for swing operator BENINCA BOB30M 230V
| SKU | Name | Price: | Quantity | |
|---|---|---|---|---|
 | 01 (02P.911367) | PLASTIC COVERS ΒΟΒ30Μ |
|
|
 | 01A (02P.911581) | UNLOCK SYSTEM WITH PERSONALIZED KEY AND COVER BOB 30M |
|
|
 | 02 (02P.911400) | UPPER COVER ΒΟΒ30Μ |
|
|
 | 02P.911062 | CAPACITOR 12,5μf BOB 30M |
|
|
 | 03 (02P.911364) | LOWER COVER ΒΟΒ30Μ |
|
|
 | 04 (02P.911402) | WORM SCREW ΒΟΒ30Μ |
|
|
 | 05 (02P.911403) | GEAR ΒΟΒ30Μ |
|
|
 | 06 (02P.911376) | WORMSCREW SUPPORT ΒΟΒ30Μ |
|
|
 | 07 (02P.911366) | MOTOR ΒΟΒ30Μ |
|
|
 | 08 (02P.911363) | BLISTER ΒΟΒ30Μ |
|
|
 | 09 (02P.911407) | LOCK WITH PIN ΒΟΒ30Μ |
|
|
 | 10 (02P.911408) | RELEASE LEVER ΒΟΒ30Μ |
|
|
 | 11 (02P.911412) | LOCKS ΒΟΒ30Μ |
|
