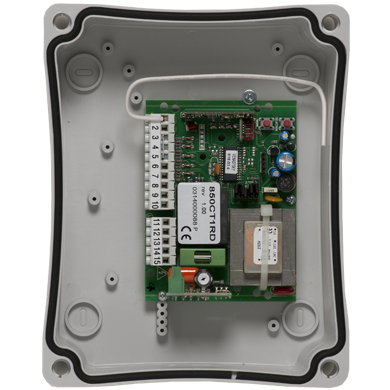

KEY CT-1RD electronic control unit for operator 230V

KEY CT-1RD electronic control unit for operator 230V

This control unit is for one motor for rolling shutter or sliding gate, 230vac, with electric clutch, limit switch and receiver. Easy programming with trimmers and dip-switches. Versatile. On board radio reciever. Extractavle radio memory. Electric limit switches. OPEN and STOP outputs. Man present functions. Pedestrian open functions. Flashing light output. Electric adjustment of power.

Electrical Data:

• Input power: 230/50 Vac/Hz
• Output power accessories: 24 Vac (Vdc)
• Max motor power: 600 w
• Max working time: 180 sec
• Max pause time: 120 sec
• Obstacle Detection: -

Generic Data:

• Protection degree: 54 IP
• Dimensions (L-D-H): 160-90-200 MM
• Operating temperature: -20 +55 oC
