ACM TITAN BM E OPERATOR FOR ROLLER SHUTTERS D60/220 DOUBLE 280 KG
01N.121003
Description
ACM TITAN BM E gearmotor for rolling shutters
Technical specifications:
| Weight motor | 14 Kg |
| Absorbed Power | 1260 watt |
| Power supply | 220 – 230 volt |
| Consumption | 5.4 A |
| Capacitor | 20 μF |
| Thermal Protection | 160°C |
| Working Temperature | -20 C ~ + 55 C |
| Speed motor | 10 rpm |
| Torque | 260 Nm |
| Release | Electrobrake with release |
| Type lubrication | Grease |
| Limit switch range | 6 m |
| Cut out temperature | 4 min |
| Lifting | 280 kg |
| Corona | Φ200 mm |
| Power | 220 volt |
| Tube rolling | Φ60 mm |

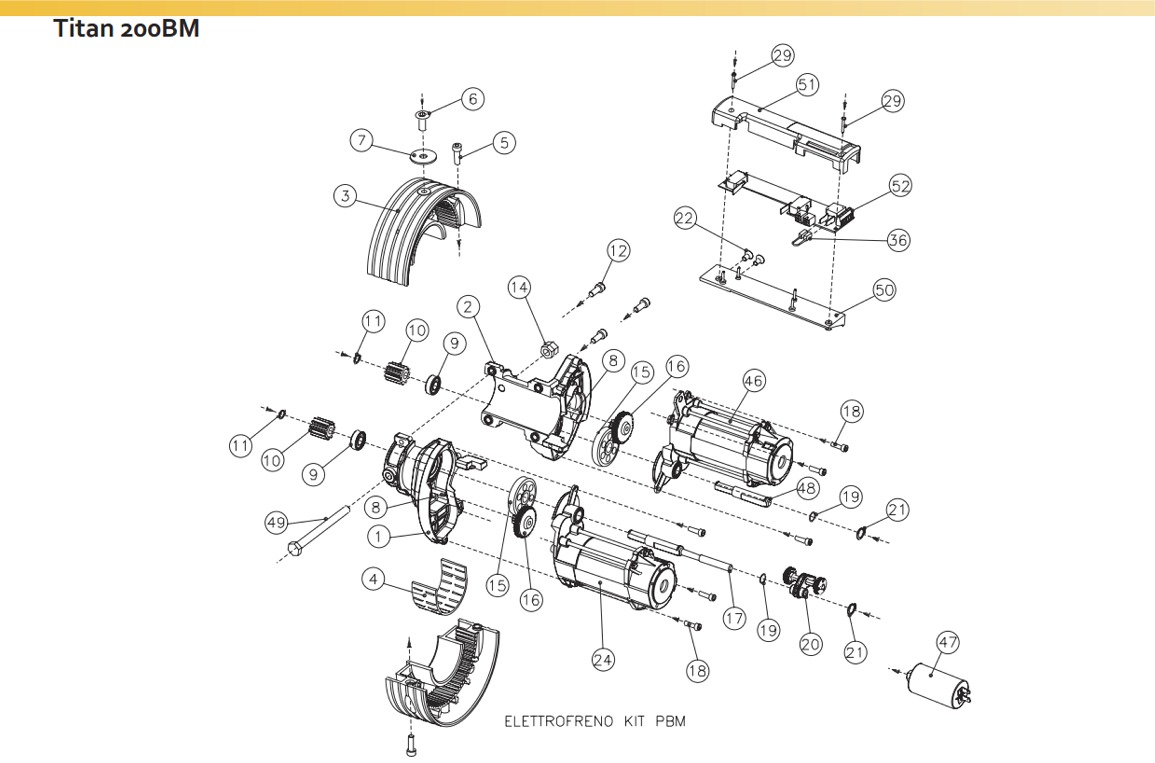

Illustration <A>, components and spare parts for ACM TITAN BM E
Illustration <B> kit electrobrake ACM
| SKU | Name | Price: | Quantity | |
|---|---|---|---|---|
 | 01P.900010 | SHIM RANGE FOR 220 MM ENGINE RING DAMPER SPRINGS FOR ACM |
|
|
 | A-47 (08N.100020) | CAPACITOR 20μf ACM |
|
|
 | A-50-51 (01P.900005) | BOX TERMINAL BOARD ACM |
|
|
 | A-52 (01P.900006) | TERMINAL BOARD ACM |
|
|
 | B (01P.900001) | ELECTROBRAKE FOR ACM MOTOR MODEL TITAN 200BM, TITAN 240/76BM, TITAN 240/101BM. Type PBM |
|
|
 | B-01 (01P.900009) | TEFLON ELECTROBRAKE ACM |
|
|
 | B-02 (01P.900012) | MANUAL RELEASE ACM |
|
|
 | B-06 (01P.900003) | UNLOCKING FLEXIBLE CABLE L= 5m |
|
|
 | B-06 (01P.900004) | UNLOCKING FLEXIBLE CABLE 7m |
|
